How Current Predictions Work
1. The Ocean Model
Our predictions begin with ADCIRC (Advanced Circulation), a high-resolution ocean model developed at UNC and Notre Dame, widely used by NOAA and the US Army Corps of Engineers. ADCIRC solves the shallow water equations — the fundamental physics of how water moves — on an unstructured triangular mesh of over 2 million nodes.
The shallow water equations describe three things: conservation of mass (continuity) and the balance of forces in two horizontal directions (momentum). Here are the full equations:
u, v = depth-averaged velocities • ζ = surface elevation • H = total depth (h + ζ)
f = Coriolis parameter • g = gravity • ρ = water density
Pa = atmospheric pressure • τs = wind stress • τb = bottom friction
ii. Simplify for a tidal-only simulation
No weather forcing: atmospheric pressure gradients and wind stress drop out.
These are solved at every node in the mesh, at every time step, producing velocity time series u(t) and v(t) at each node.
Note: ADCIRC does not solve these equations in their standard form. It reformulates the continuity equation into a Generalized Wave Continuity Equation (GWCE) — a second-order wave equation that eliminates spurious numerical oscillations inherent to finite element methods on large unstructured meshes.
2. From Simulation to Constituents
The raw time series above is accurate but impractical — gigabytes of data that only covers the simulated period. To make predictions for any date, we need to extract the underlying tidal patterns.
A harmonic analysis is performed on each node's time series. Because the tidal frequencies are known precisely from astronomy, a least-squares method can decompose the complex signal into its individual wave components:
Least-squares decomposition
signal(t) = Σ Ai · cos(ωi · t − φi)
ωi = known tidal frequency (from astronomy) • solve for Ai (amplitude) and φi (phase)
This is similar to how a prism splits white light into its component colors — the complex tidal signal is split into its component waves. The result at each node is a set of amplitudes and phases that compactly encode the full tidal behavior.
3. The Tidal Constituents
Each constituent corresponds to a specific gravitational cycle of the Moon and Sun. Together they capture the dominant patterns in tidal currents — like individual notes that combine to form a chord.
The 8 constituents extracted at every mesh node:
M2 — Principal lunar (12.42h period) — the dominant tide S2 — Principal solar (12.00h) N2 — Larger lunar elliptic (12.66h) K1 — Luni-solar diurnal (23.93h) O1 — Principal lunar diurnal (25.82h) P1 — Principal solar diurnal (24.07h) M4 — Shallow water overtide of M2 (6.21h) M6 — Shallow water overtide of M2 (4.14h)
At each mesh node, ADCIRC provides the amplitude and phase of every constituent for both the east-west (U) and north-south (V) current components.
4. Predicting Currents at Any Time
To calculate the current at a specific moment, we use harmonic synthesis — summing the contribution of each constituent separately for the east-west (U) and north-south (V) components:
Harmonic synthesis — east-west current
Harmonic synthesis — north-south current
U(t) = east-west current velocity at time t • V(t) = north-south current velocity at time t fi = nodal correction factor (Moon's 18.6-year orbital wobble) Aui, Avi = amplitude of U and V current for constituent i Vi = astronomical argument (positions of Moon & Sun at this moment) ui = phase adjustment from the nodal cycle φui, φvi = local U and V phase offsets from the ADCIRC model (Note: f and u here are standard tidal notation, distinct from the Coriolis f and velocity u used above)
Current speed & direction
Direction θ follows nautical convention: 0° = north, 90° = east, 180° = south, 270° = west.
This is the direction the current is flowing toward.
The astronomical calculations (V, u, f) are computed using the TTide library, which tracks the precise positions of the Moon and Sun for any date.

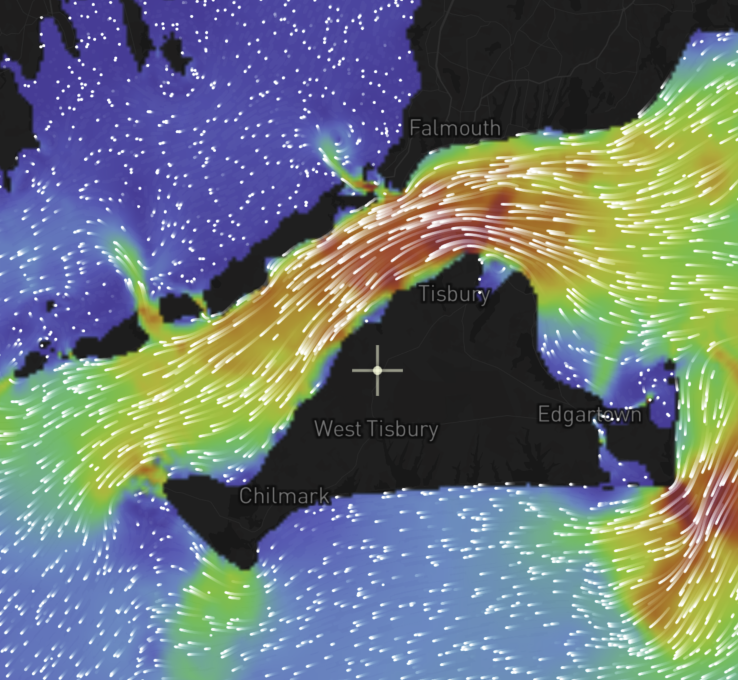

5. From Numbers to Flow
The result is a U (east-west) and V (north-south) velocity at every mesh node. These velocities are then:
• Converted from m/s to knots
• Interpolated across triangles using barycentric coordinates so particles can flow smoothly between nodes
• Visualized as animated particles that follow the current — faster flow means faster, brighter particles
6. What This Means
Because tides are driven by celestial mechanics, they are highly predictable. This app can calculate accurate current predictions for any date — past or future — at any of the 2 million+ points in the mesh.
However, predictions do not account for wind, storms, river discharge, or other non-tidal forces that can temporarily alter currents. Always consult official sources for navigation.
